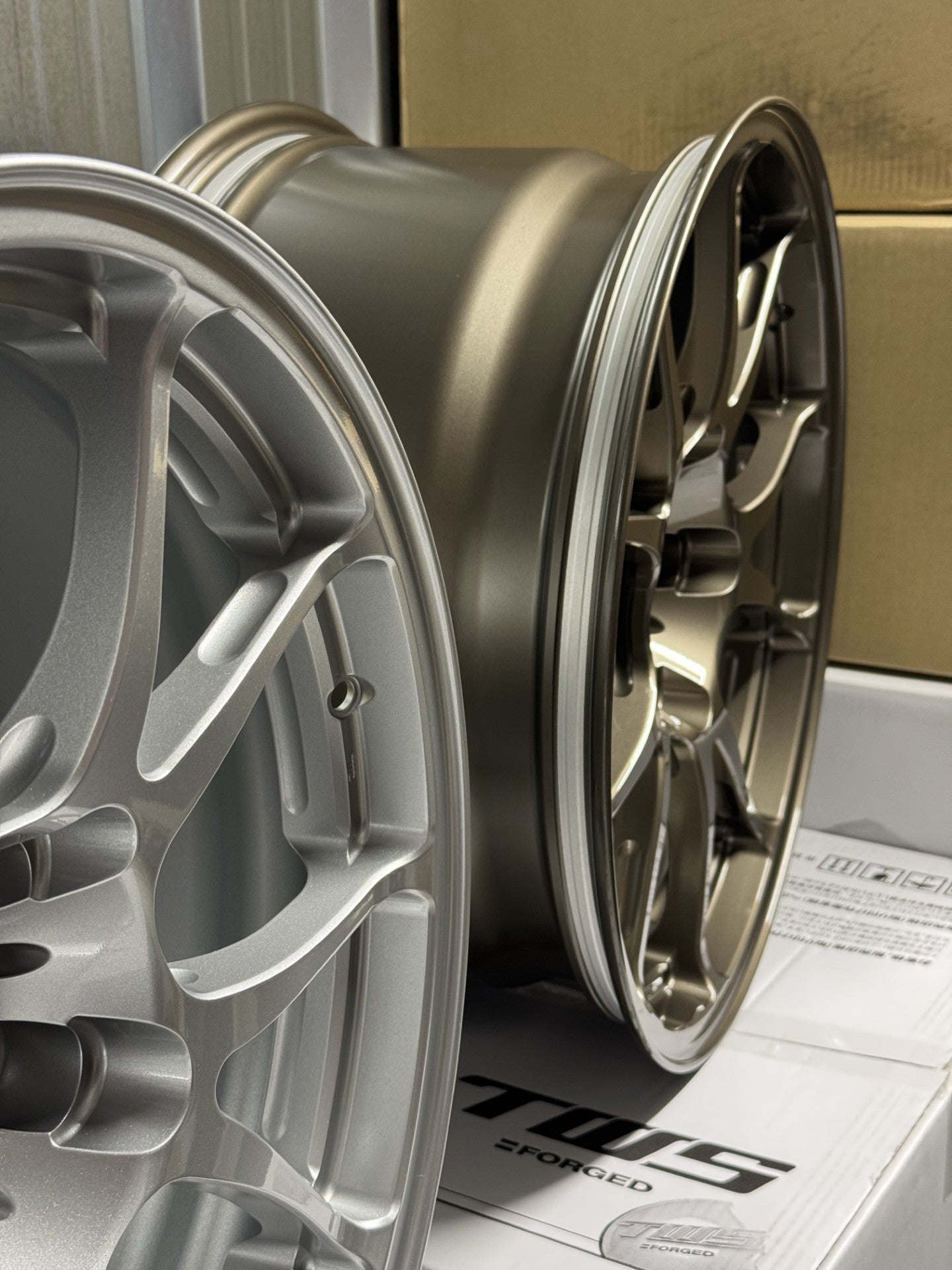

TWS T66-F BMW custom wheel finishes and forged barrel detail

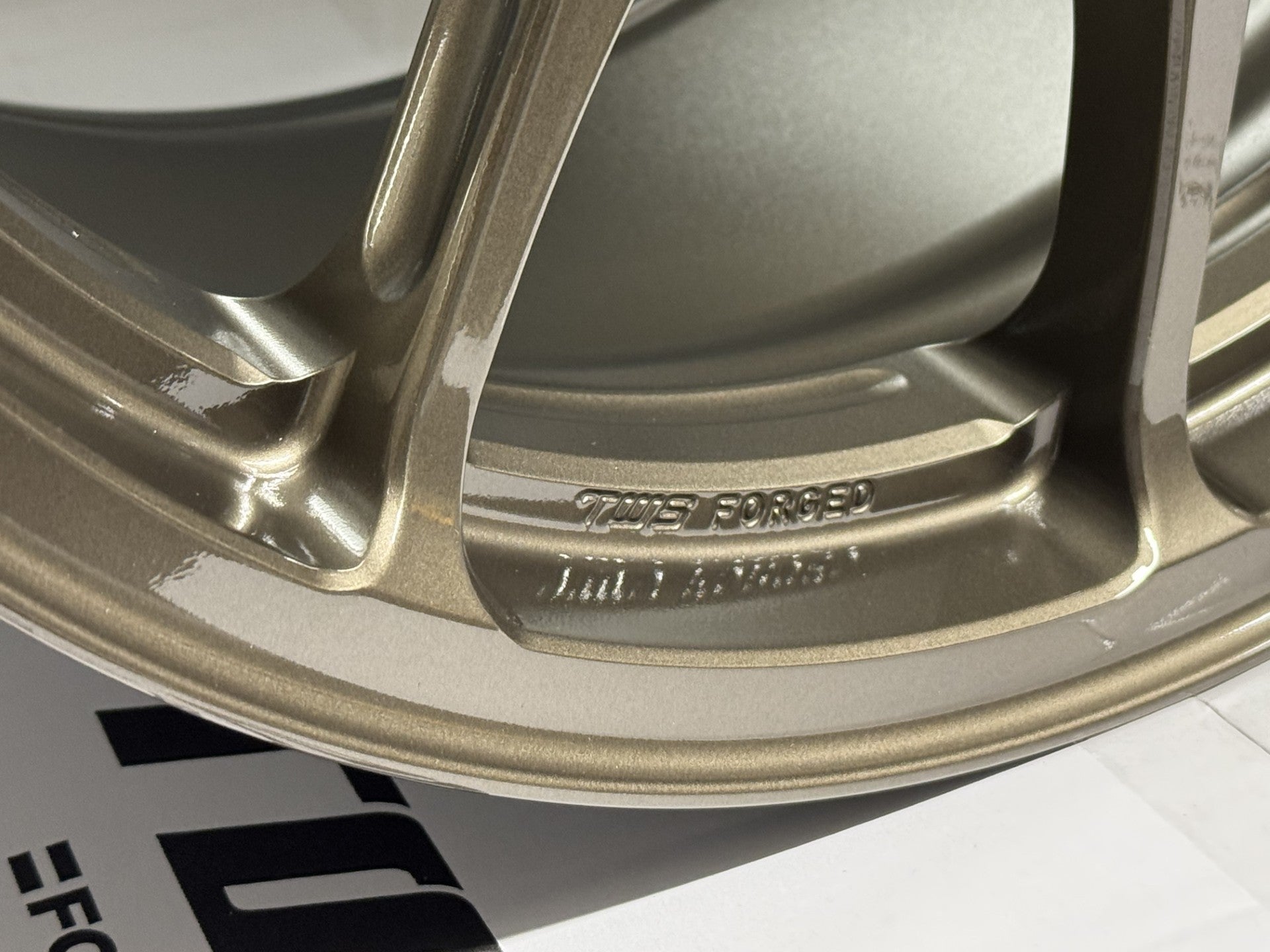

TWS T66-F forged wheel TWS Forged branding and finish detail
TWS Motorsport T66-F standard colour example in Flat Gold

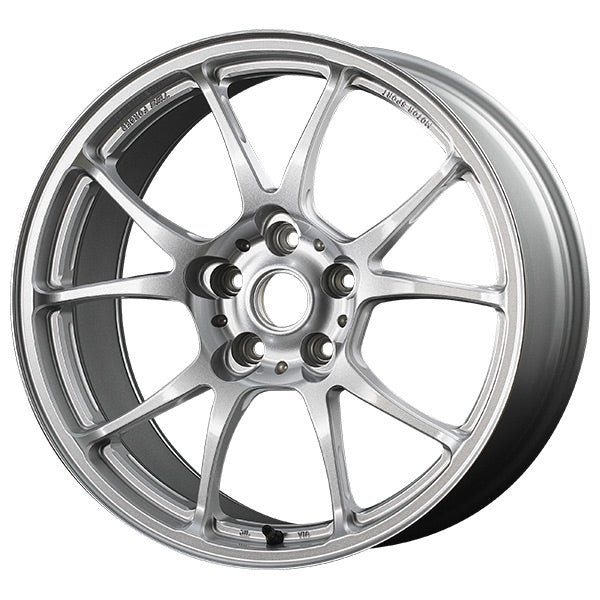

TWS Motorsport T66-F standard colour example in Gloss Silver
TWS Motorsport T66-F standard colour example in Gloss Gunmetal

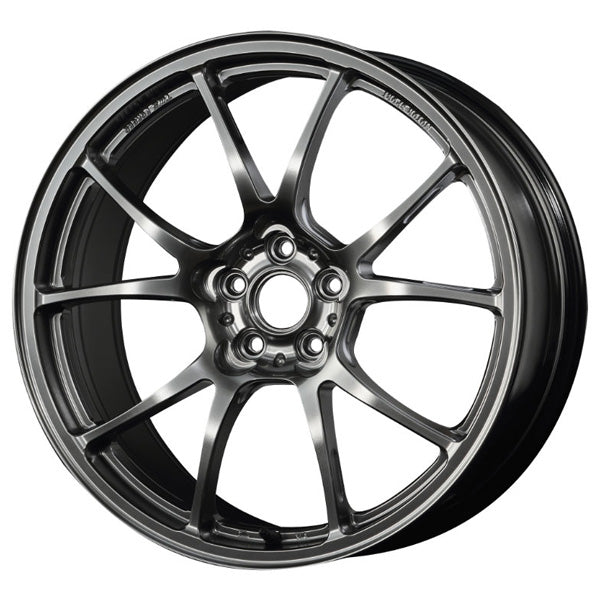

TWS Motorsport T66-F standard colour example in Gloss Hyper Gunmetal

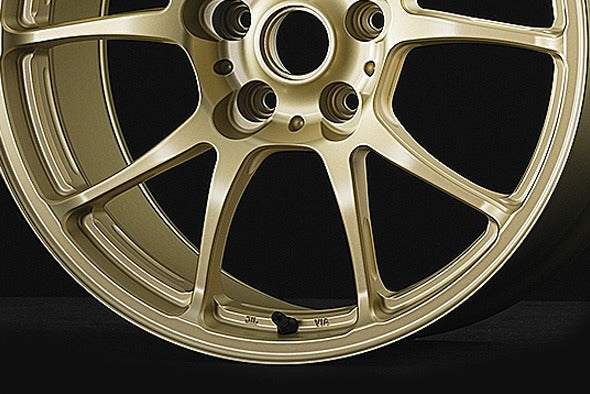

TWS T66-F wheel face, valve and JWL VIA marking detail
TWS T66-F side-milled forged spoke detail

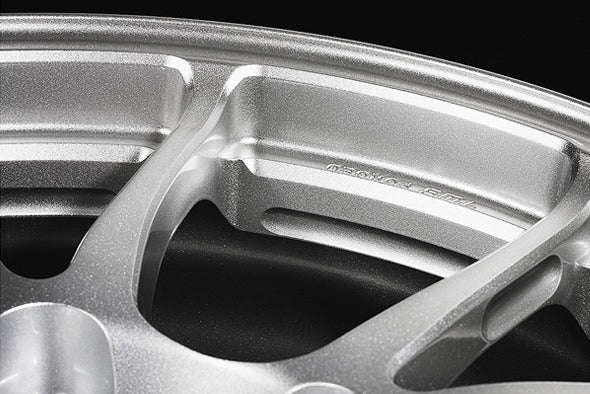

TWS T66-F forged wheel barrel and machining detail

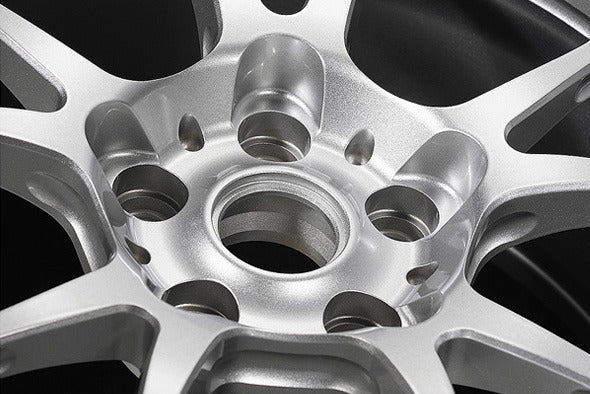

TWS T66-F centre bore and wheel-hardware clearance detail

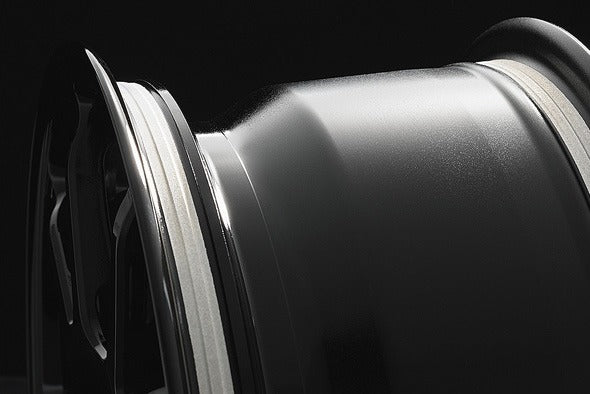

TWS T66-F forged barrel and bead-seat profile detail
TWS T66-F rear hub mounting face and back-spring machining detail
TWS forged wheel manufacturing using high-pressure forging equipment

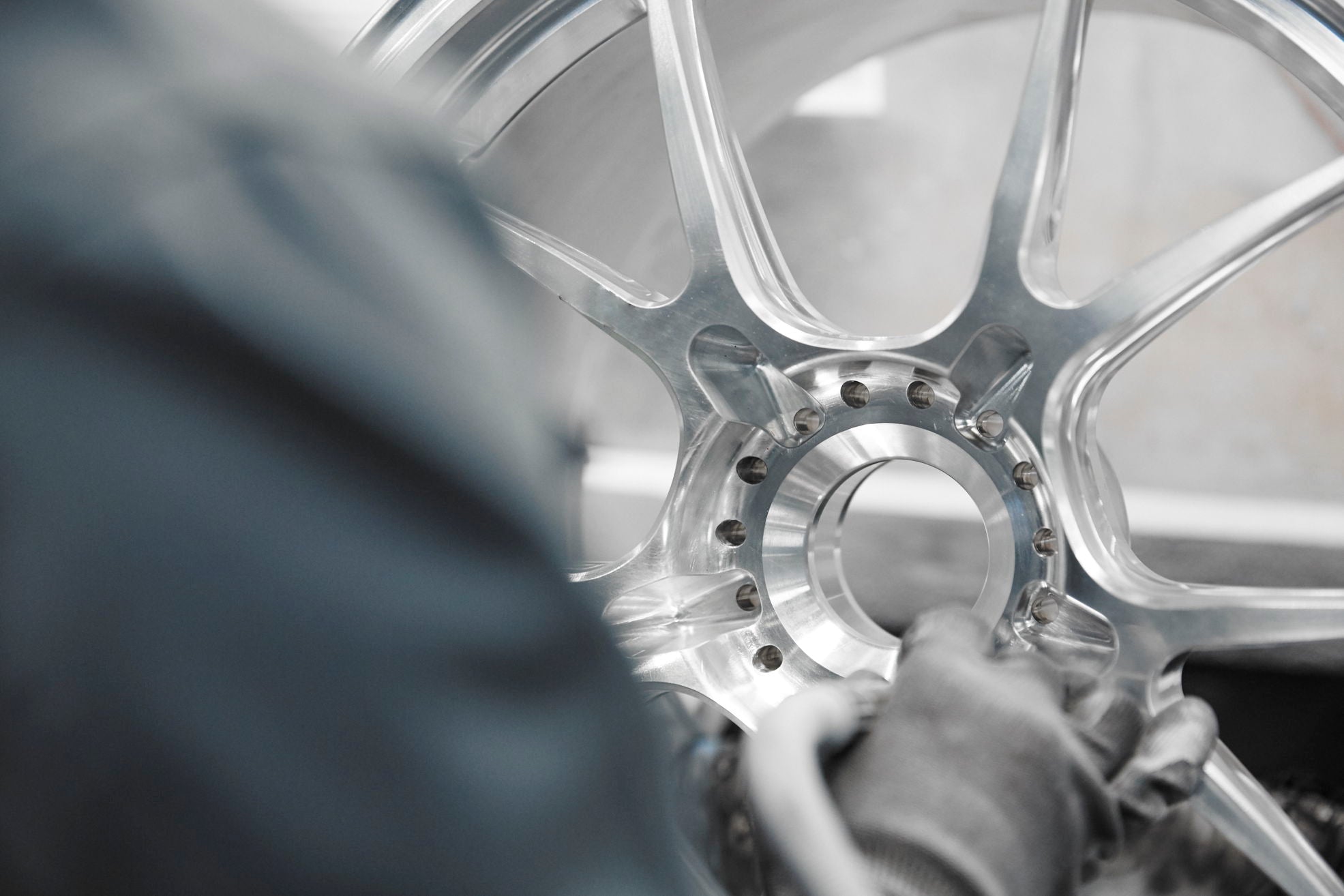

TWS forged wheel CNC machining and production process
TWS forged wheel production facility and finishing process

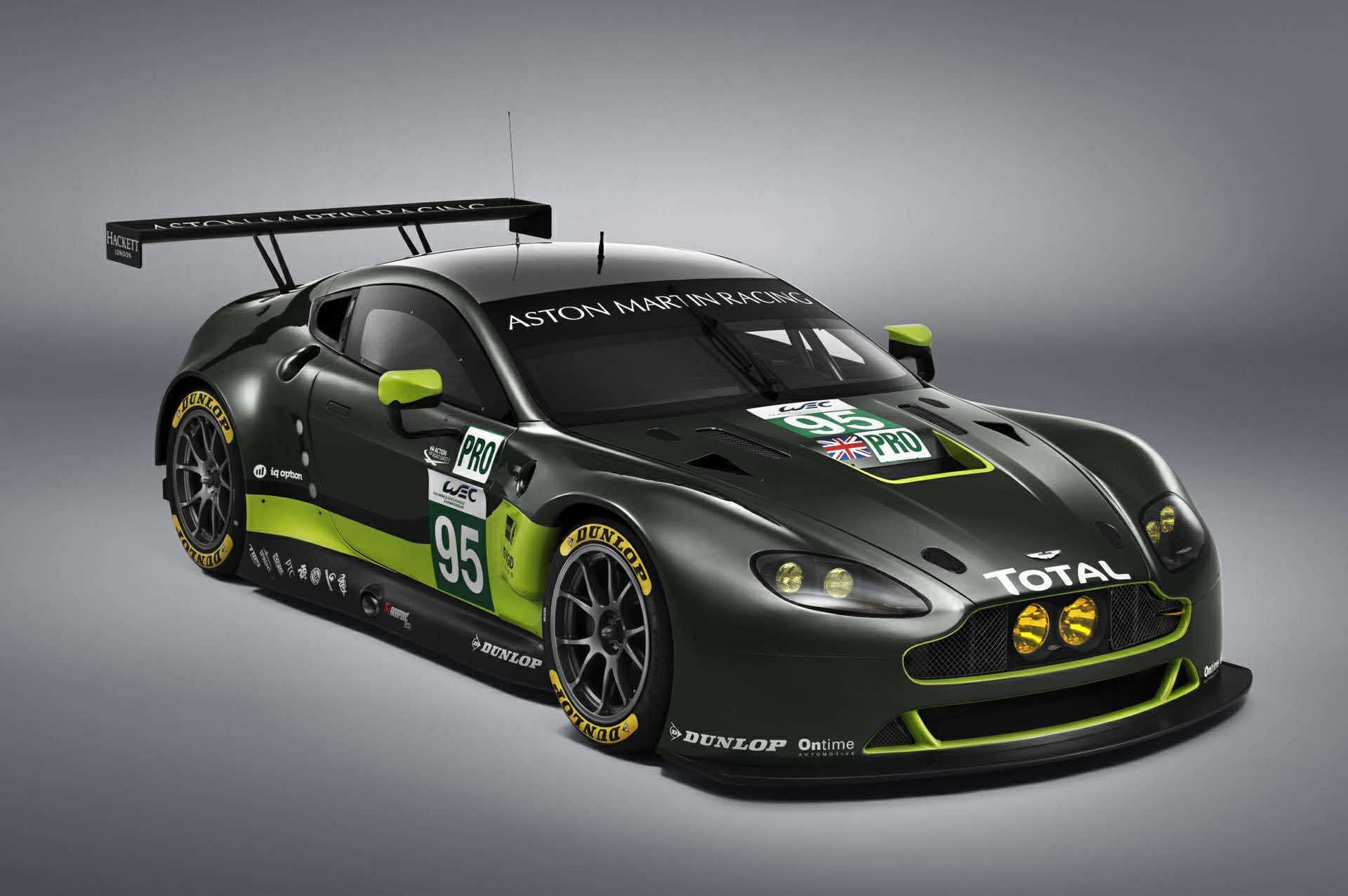

Prodrive Aston Martin Racing car using TWS T66-F magnesium motorsport wheels

TWS T66-F Forged Wheel Set – BMW F-Series M Cars

TWS Forged
Sale price£3,650.00
Colour: Gloss Black

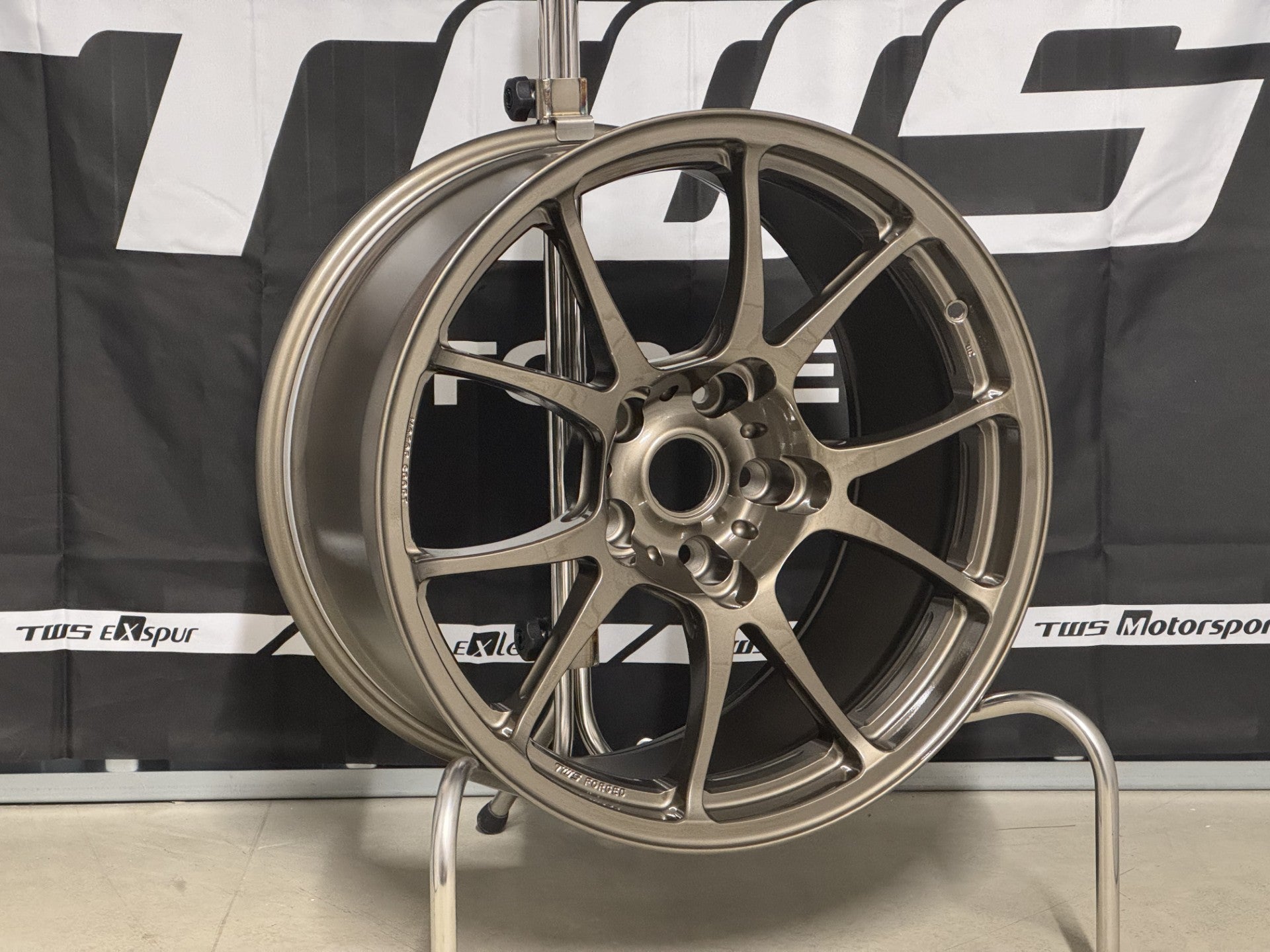

TWS Motorsport T66-F forged wheels for BMW F-series M cars combine an exceptionally low wheel weight with a one-piece forged construction and motorsport-focused details throughout.

This limited BMW specification uses a staggered 18x10 ET25 front and 18x11 ET44 rear setup. The front wheel is approximately 8.15 kg and the rear approximately 8.19 kg. Price is for a complete set of four wheels.

The T66-F sits within the TWS Motorsport range and is designed around reducing unnecessary mass while retaining the rigidity, strength and brake clearance required for demanding road and circuit use. This particular F-series BMW M fitment was commissioned as a very limited custom run; Chalk Motorsport states that only five sets were produced in this specification.

BMW F-series M specification

  • Front: 18x10 ET25 – approximately 8.15 kg
  • Rear: 18x11 ET44 – approximately 8.19 kg
  • PCD: 5x120
  • Construction: one-piece forged aluminium
  • Material: TWS 6T66 forged alloy
  • Colours: Gloss Gold, Gloss Black, Gloss Silver or Gloss Bronze

Designed for low weight without giving up strength

TWS describes the T66-F as an ultra-lightweight forged wheel developed to remove mass while maintaining rigidity. The wheel is forged as a one-piece 6T66 aluminium construction and uses a number of additional machining processes to remove material only where it is not required structurally.

For this 18-inch BMW specification, that results in a 10-inch front wheel at approximately 8.15 kg and an 11-inch rear wheel at approximately 8.19 kg. That is particularly relevant on track-focused BMWs where reducing unsprung and rotating mass can improve suspension response and reduce rotational inertia.

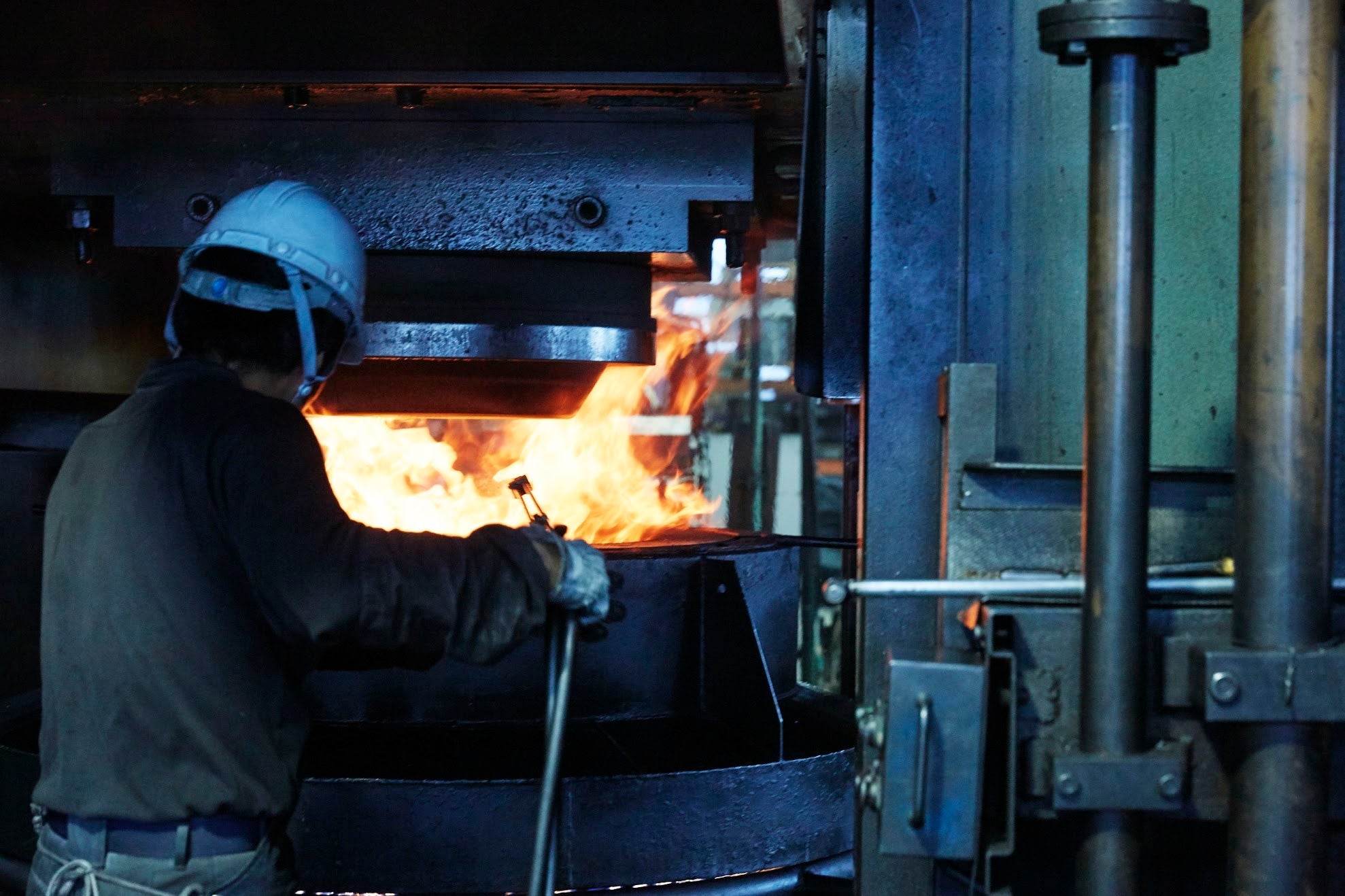

Forged under 8,000 tonnes of pressure

The TWS forging process starts with a solid aluminium billet. Chalk Motorsport describes the material as being formed under approximately 8,000 tonnes of pressure, producing a dense and aligned grain structure through the wheel rather than relying on a cast structure.

TWS also uses motorsport-focused forged blanks developed around the intended wheel application. This gives the design more freedom around spoke profile, concavity and brake clearance before the final wheel is CNC machined.

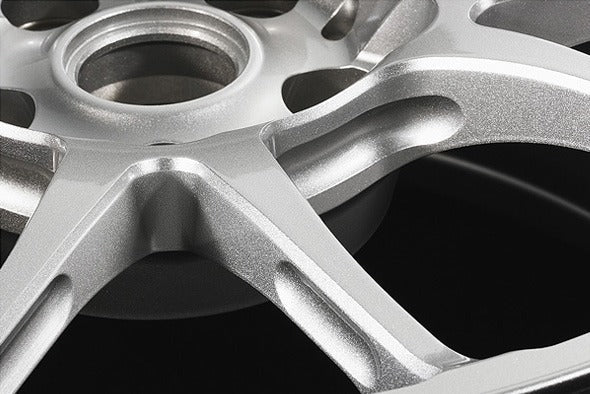

Side-milled spokes and barrels

The T66-F uses extensive side milling across the spokes and barrel. A precision CNC process removes material from areas that do not contribute meaningful strength, allowing TWS to reduce wheel mass without simply making the entire spoke or barrel thinner.

The machining is visible throughout the wheel and is one of the key reasons the T66-F can achieve such low quoted weights at 18x10 and 18x11 sizes.

Tyre security and bead-seat design

The T66-F uses non-slip processing and paintless knurled bead seats. Under repeated hard acceleration and braking, a tyre can move slightly around the wheel bead and disturb the original balance position. Leaving the knurled area unpainted keeps the surface sharp and helps resist that movement.

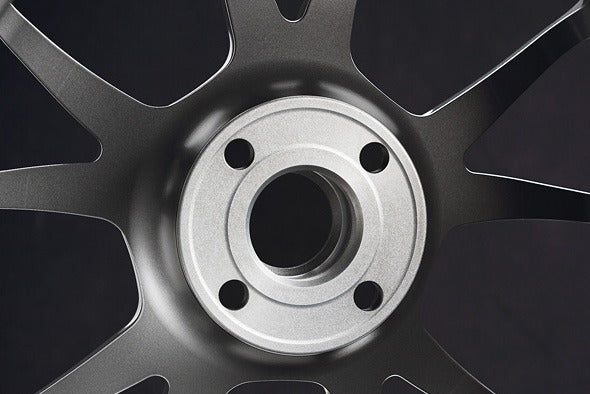

Back-spring machining and hub contact

The rear mounting face uses TWS back-spring processing to improve contact between the wheel and hub. This is another detail aimed at maintaining a consistent, secure mounting surface under demanding use.

Brake and wheel-hardware clearance

The T66-F is designed with substantial brake-caliper clearance and practical access around the wheel fixings. TWS/Chalk quote approximately 32 mm socket-diameter clearance, allowing normal workshop and impact-socket access rather than requiring unusually small wheel hardware.

The wheels are compatible with OEM mounting hardware, suitable aftermarket wheel bolts and stud-conversion systems. Brake clearance can still vary by caliper, disc and vehicle specification, so please contact us before ordering if the car uses a non-standard brake package.

Laser-engraved specification

TWS laser engraves the wheel specification on the barrel. The T66-F is also independently tested and certified to JWL / VIA standards.

TPMS and valve compatibility

The wheels accept OEM and aftermarket tyre-pressure monitoring sensors and standard-fit valve stems. If you are changing tyre specification or adding TPMS at the same time, we can advise on the complete wheel and tyre package.

BMW fitment

This specification is offered for BMW F-series M applications including:

  • BMW F87 M2
  • BMW F87 M2 Competition
  • BMW F87 M2 CS
  • BMW F80 M3 / M3 Competition / M3 CS
  • BMW F82 M4 / M4 Competition / M4 CS / M4 GTS
  • BMW F83 M4 / M4 Competition

Wheel and tyre clearance varies with tyre choice, ride height, suspension setup, brake package and alignment. If the car is lowered, uses a non-standard brake package or is intended for track use, we recommend confirming the complete specification with us before ordering.

Available colours

  • Gloss Gold (GG)
  • Gloss Black (GBL)
  • Gloss Silver (GS)
  • Gloss Bronze (GBR)

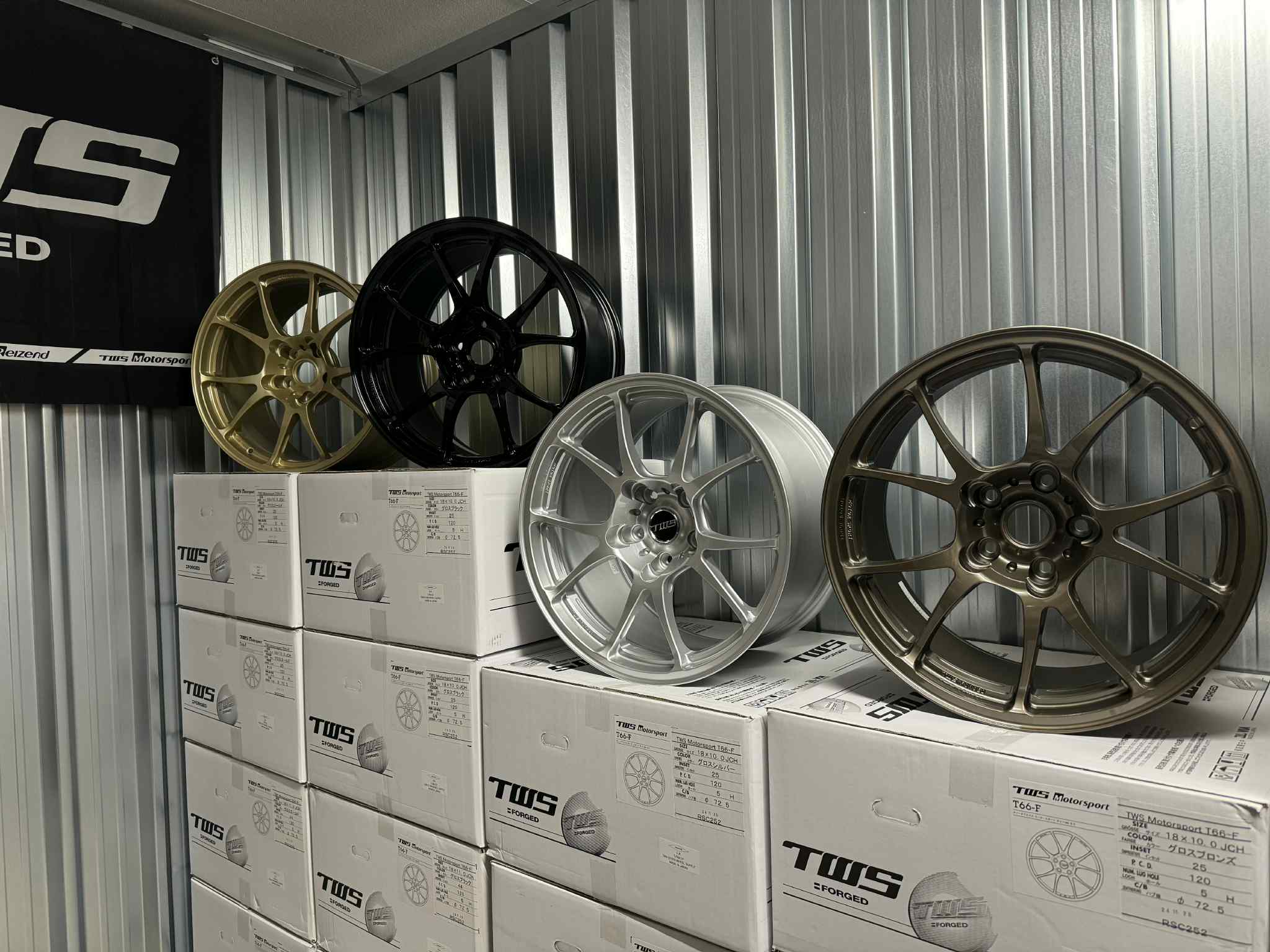

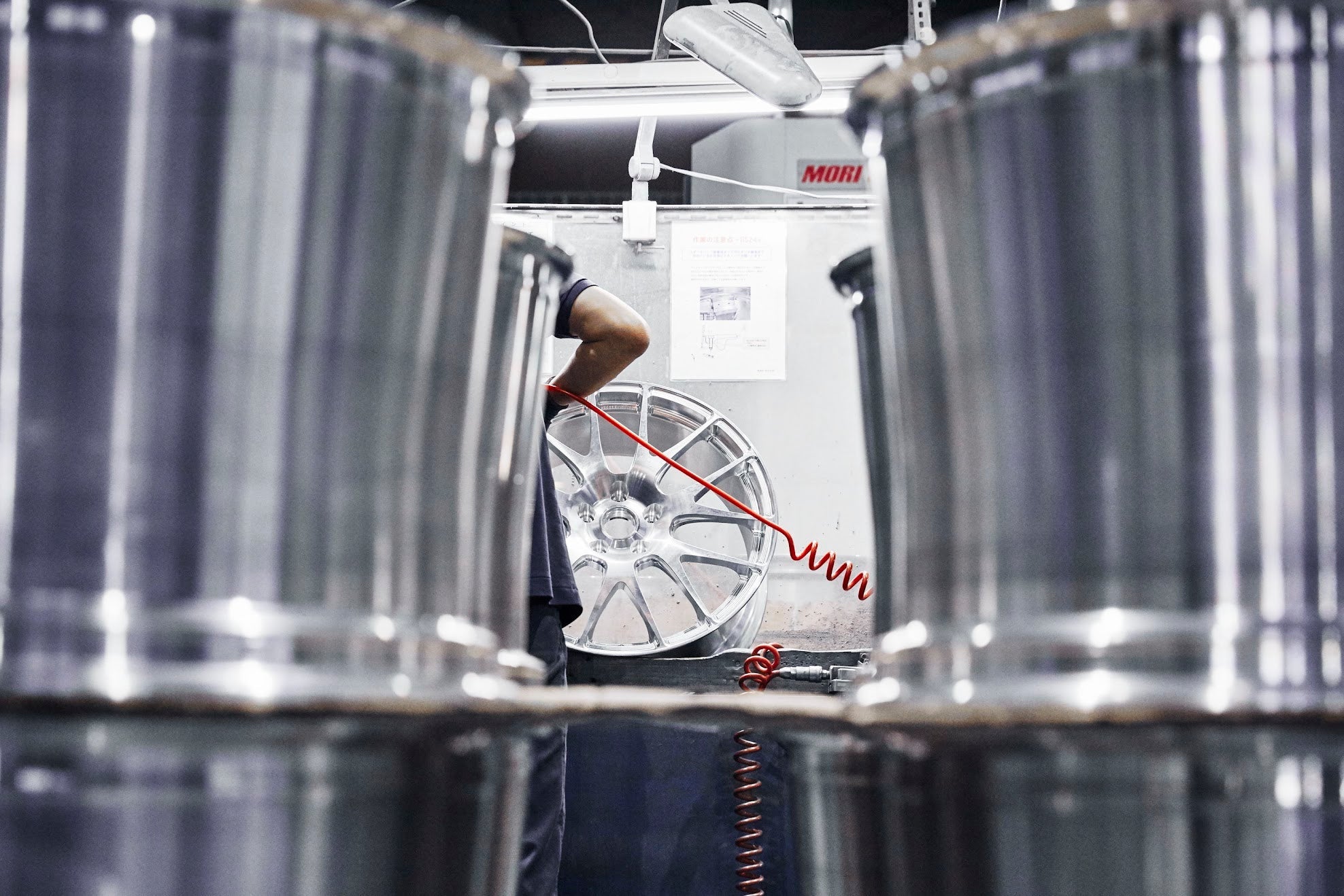

The main gallery includes photography of the limited F-series colour set together with additional T66-F detail, standard-colour reference and manufacturing photography.

Warranty

TWS Forged wheels are supplied with a lifetime structural warranty against defects in workmanship and materials, together with a one-year finish warranty, subject to the manufacturer's warranty terms.

Supply, tyres and setup

Swift Performance can supply the wheel set on its own or advise on tyre sizing around the way the car is used. We can also provide tyre fitting and balancing, TPMS installation and four-wheel geometry where required.

Frequently asked questions

Is the price for one wheel or a complete set?

This listing is for a complete staggered set of four wheels: two 18x10 ET25 fronts and two 18x11 ET44 rears.

Are these forged or flow-formed?

The T66-F is a one-piece forged aluminium wheel using TWS 6T66 material.

Can I use the factory wheel hardware?

Yes. TWS states that the wheels are compatible with OEM mounting hardware as well as suitable aftermarket bolts and stud-conversion systems.

Can I retain TPMS?

Yes. OEM and aftermarket TPMS sensors can be fitted.

Will they clear my brakes?

The T66-F is designed around substantial caliper clearance, but exact clearance depends on the brake package. Contact us with the vehicle and brake specification if you would like this confirmed before ordering.
