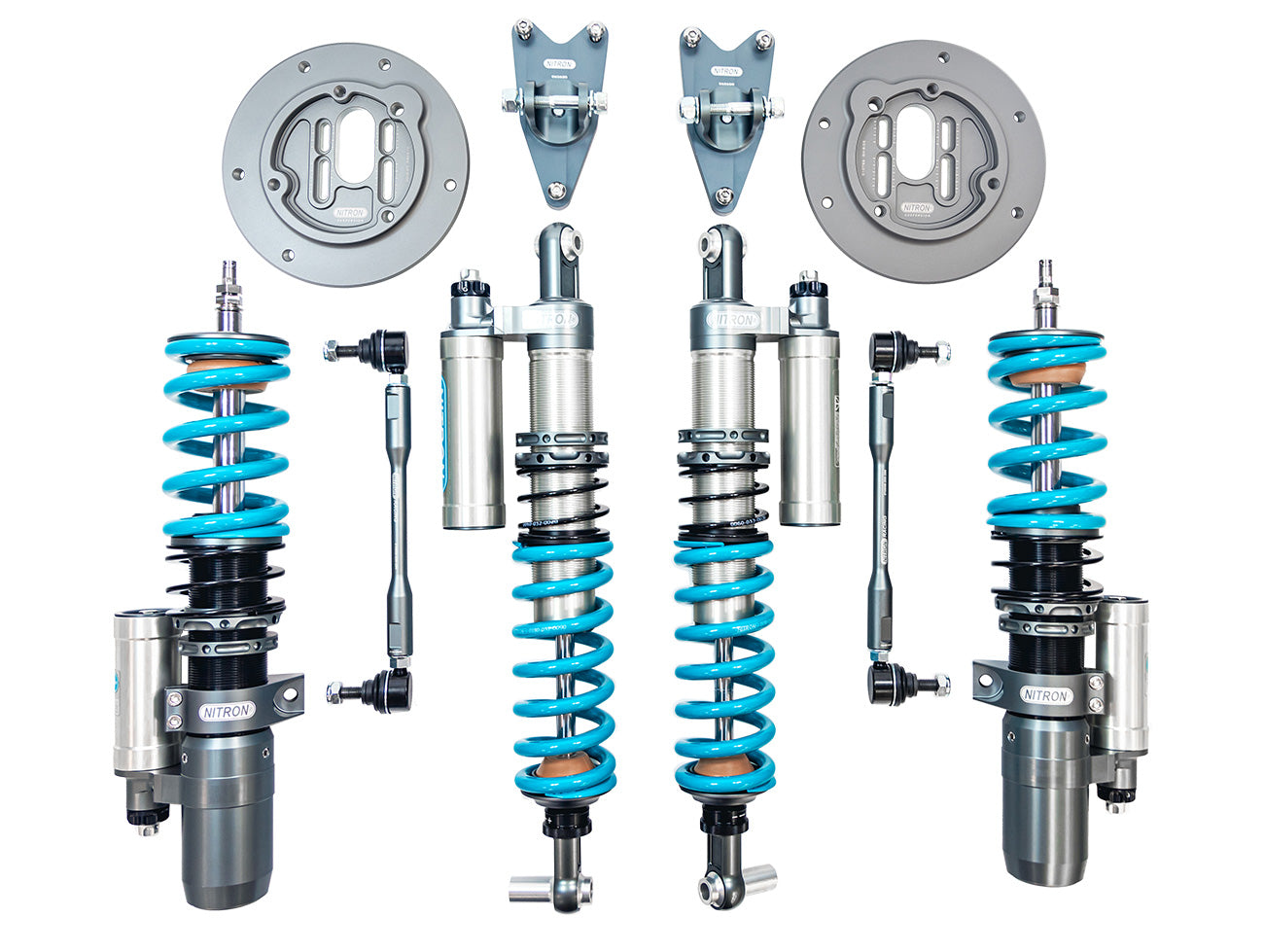

Nitron R3 Coilovers with Front Axle Lift – BMW G87 M2 / G80 M3 / G82 M4
Nitron R3 with Front Axle Lift for BMW G87 M2 / G80 M3 / G82 M4 combines Nitron's 3-way R3 platform with its hydraulic front lift system. Rebound, low-speed compression and high-speed compression are adjusted independently.

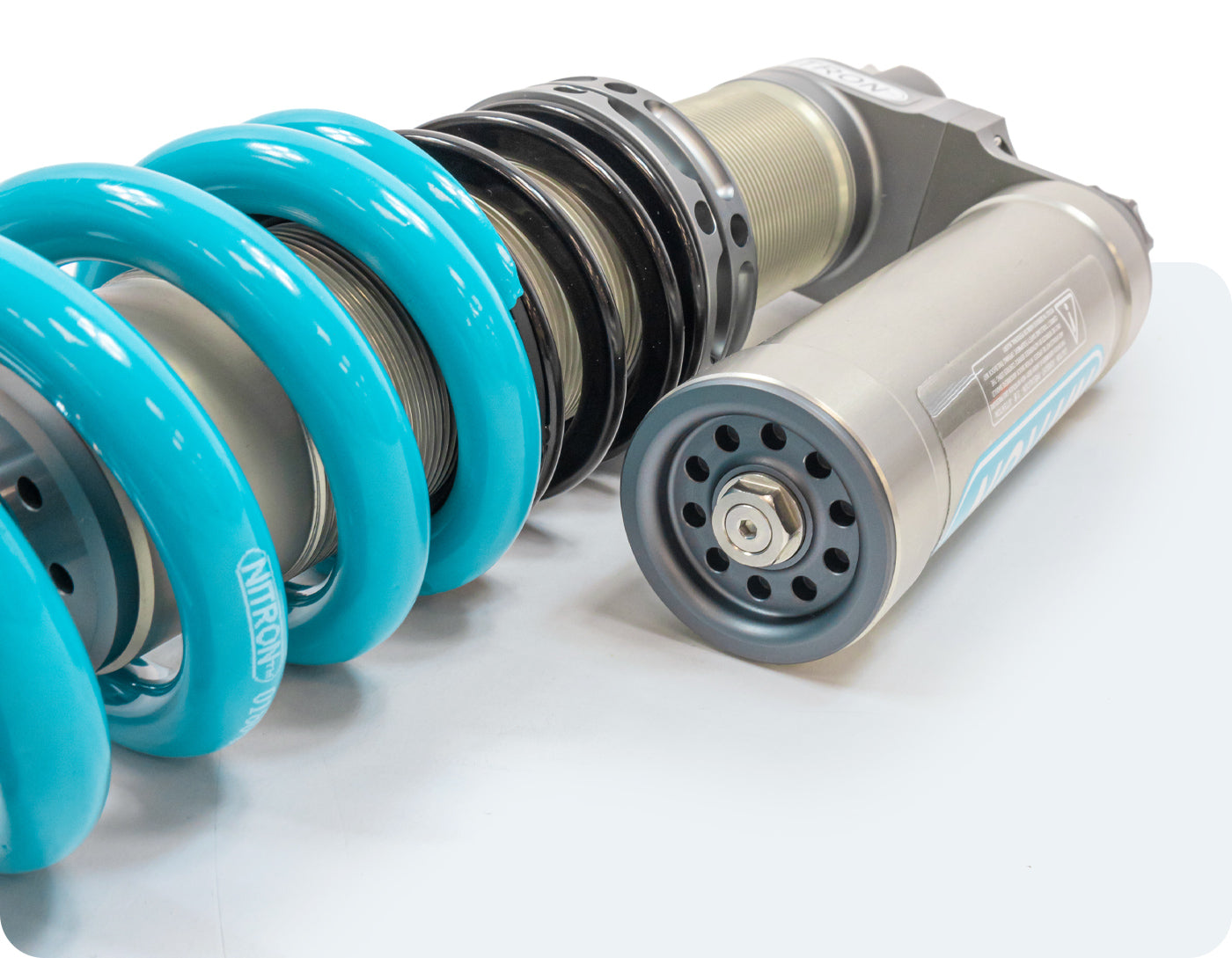

The FAL system raises the front axle by 25 mm at the shock, while the R3 uses a large-diameter piston design, high-strength piston rods and external reservoirs for consistent damping under hard use.
Key features
- Independent rebound, low-speed compression and high-speed compression adjustment
- Large-diameter piston architecture with high-strength piston rods
- BMW application-specific spring rates and damper valving
- Ride-height adjustable coilover construction
- Reservoir configuration: piggyback or hose-mounted

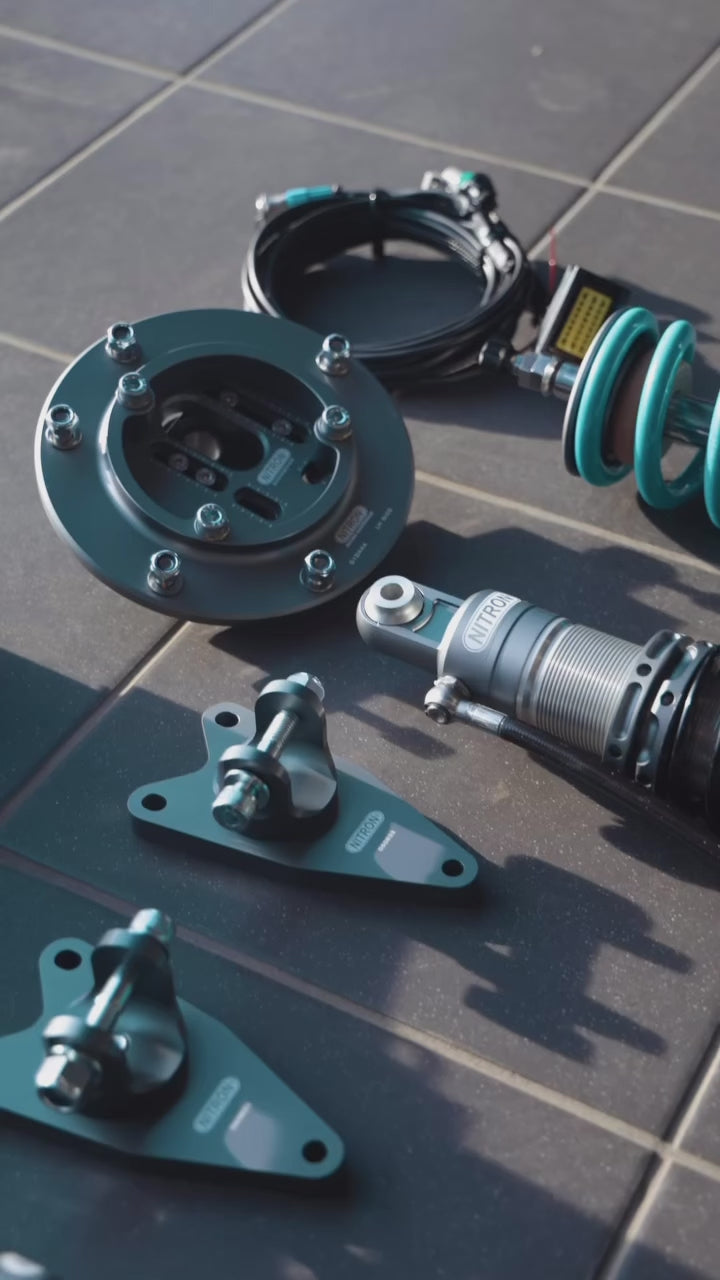

- Includes Nitron adjustable front top mounts
- Includes adjustable drop links
- High-grade corrosion-resistant and hard-anodised components
- Hand-built, custom sprung and valved, and fully serviceable
- Nitron Bi-Axis hose fittings allow accurate reservoir hose alignment during installation

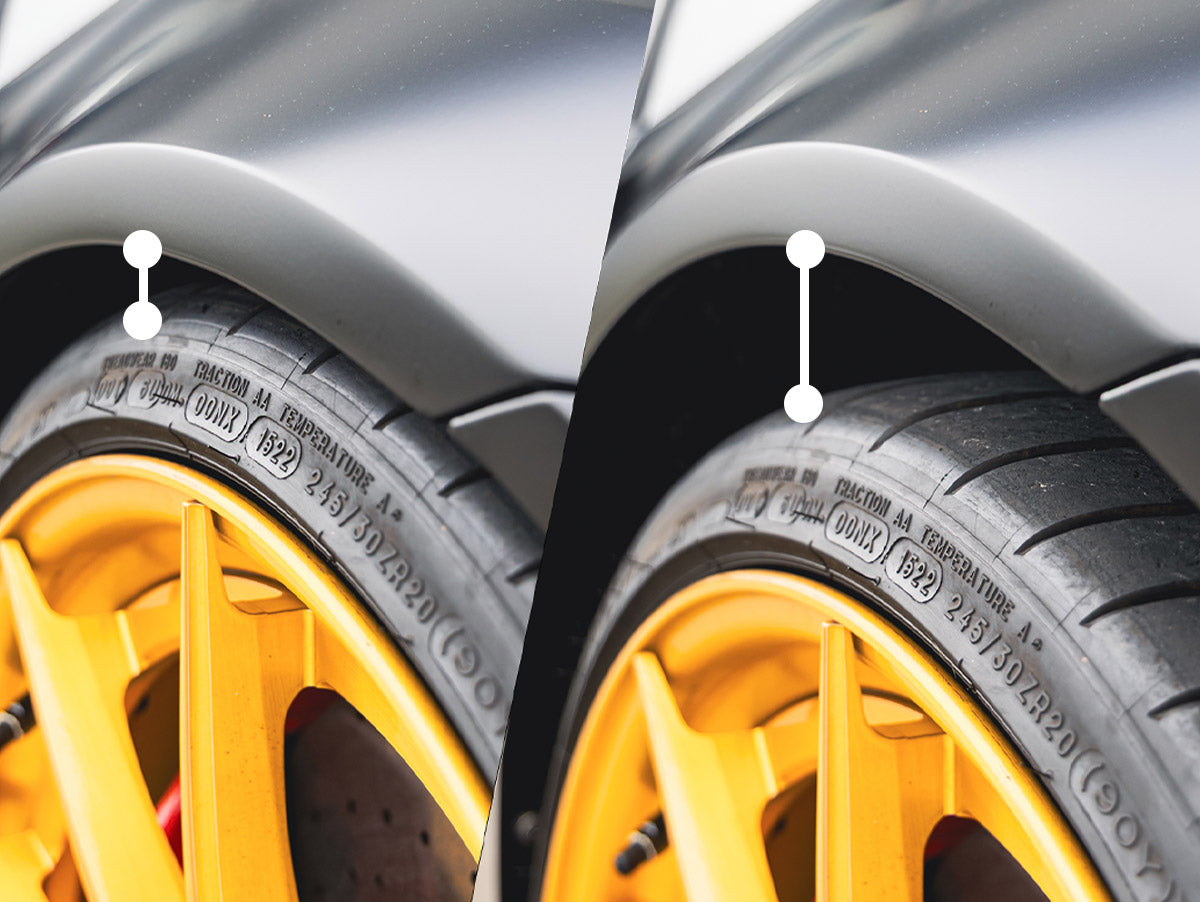

- Front Axle Lift raises the front axle by 25 mm at the shock
- 250 W hydraulic pump
- Typical lift / lower time under 3 seconds

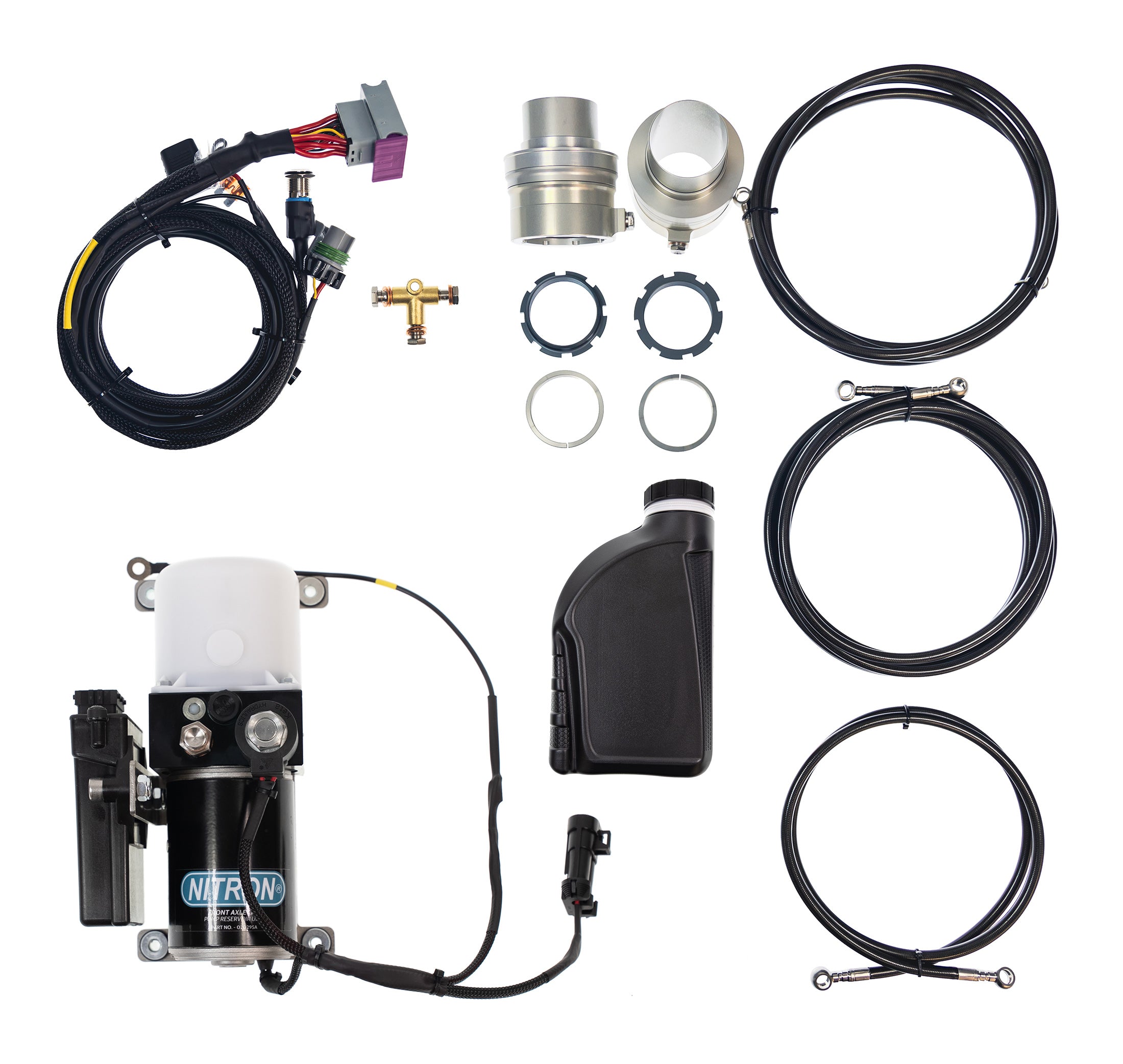

- Complete hydraulic system including cylinders, hydraulic lines, pump, wiring loom and controller
- Audible in-cabin warning and illuminated dashboard control
Fitment
Fitment: G87 M2 / G80 M3 / G82 M4. Models: M2, M3, M3 Competition, M4, M4 Competition, M4 CSL. Nitron application years: 23–, 20–.
Images are representative; exact fittings and hardware vary by application.
Ordering and specification
Specification: before the kit is built we will normally confirm how the car is used, tyre choice, ride height and any relevant supporting modifications, then finalise the spring and damper specification with Nitron.
Why Swift Performance?
Swift Performance works directly with Nitron as a BMW development partner and has first-hand experience installing Nitron Front Axle Lift systems on BMW M cars. We understand both the suspension setup and the additional hydraulic hardware, including pump, line and control installation.
We can confirm the correct specification before the kit is built, supply it for delivery, or install and commission the complete system in-house with ride height, four-wheel alignment and a baseline damper setup where applicable.
Frequently asked questions
What adjustment does the R3 provide?
Rebound, low-speed compression and high-speed compression are independently adjustable.
Is the R3 serviceable?
Yes. Nitron R3 dampers are hand-built and fully serviceable.
Can Swift Performance fit and set up the kit?
Yes. We can install the kit, set ride height, establish baseline damper settings and complete the wheel alignment.
